Gauge Hatch & Thief Hatch

Introduction to Gauge and Sampling Hatches

The gauge and sampling hatch, also known as a Gauge Hatch or Thief Hatch, is a critical control and safety device for liquid storage tanks, designed to provide safe access for sampling, measuring liquid level, temperature, and conducting routine inspections. These hatches are engineered to allow easy operator access while preventing vapor release, fluid leakage, and contamination of the tank contents.

Using standardized sampling hatches, particularly in the oil, gas, petrochemical, and chemical industries, plays a vital role in enhancing operational safety and measurement accuracy. They are considered essential auxiliary equipment for atmospheric and low-pressure tanks.

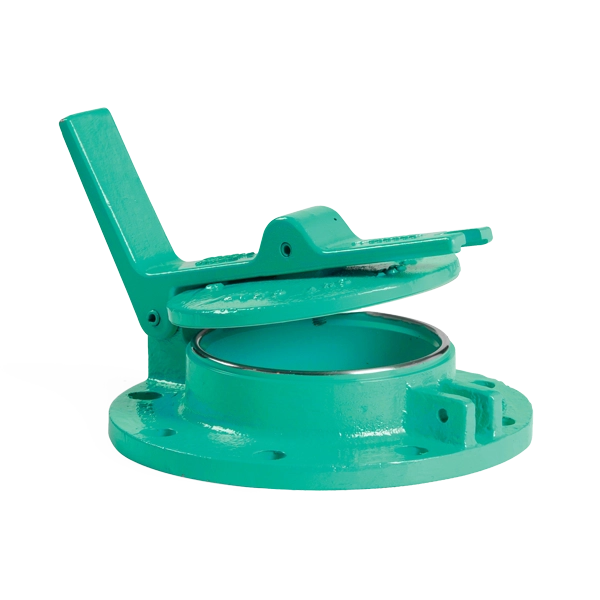

What is a Gauge Hatch and How Does It Work?

A Gauge Hatch is mounted on the tank roof and allows controlled opening for measurement or sampling operations. The hatch is typically equipped with a spring-loaded or weighted mechanism that ensures automatic closure when released. This feature prevents the hatch from being accidentally left open and reduces the risk of releasing flammable or toxic vapors.

During sampling or level measurement, the operator can insert necessary tools such as a hand gauge, thermometer, or sampling bottle through the hatch without having to open larger access points or create unsafe conditions.

Applications of Thief Hatches

Gauge and sampling hatches are widely used in storage tanks for crude oil, petroleum products, chemicals, solvents, and other industrial liquids. They are applied in refineries, storage terminals, loading and unloading tanks, petrochemical plants, and chemical processing units. Wherever manual sampling or direct liquid level measurement is required, using a Thief Hatch provides a safe and controlled access point in compliance with industrial safety standards.

Advantages of Using Gauge Hatches

Using a gauge and sampling hatch enhances operator safety during operations and reduces the risk of contact with hazardous vapors or flammable liquids. Properly sealed hatches prevent fluid leakage and vapor emission, contributing to environmental protection.

Moreover, the simple and robust design of a Gauge Hatch ensures ease of operation and reduces the need for complex maintenance. Its self-closing mechanism allows better process control and compliance with safety standards.

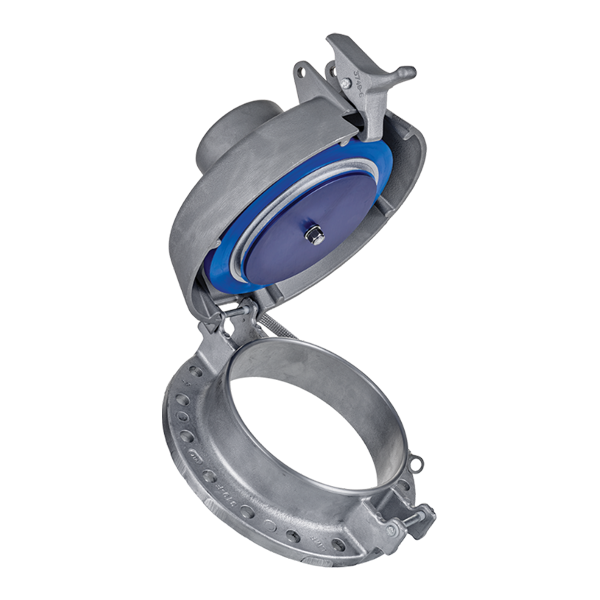

Design and Main Components of Gauge Hatches

Gauge Hatches typically consist of:

Main body
Hinged lid
Spring-loaded or weighted mechanism
Sealing gasket
Locking or opening-limiting system

These components are designed to provide smooth opening and closing, reliable sealing, and resistance to harsh environmental conditions. Depending on the application, the hatch can also include an internal flame arrestor to prevent flame propagation into the tank in explosive environments.

Materials and Standards

Gauge Hatches are generally made from carbon steel, stainless steel, or corrosion-resistant alloys to withstand chemicals, weather conditions, and corrosive vapors. Material selection is based on fluid type, temperature, operating pressure, and environmental conditions.

The design and manufacturing of these hatches comply with international tank and industrial safety standards to ensure reliable and safe performance throughout the equipment’s service life.

Installation and Maintenance of Gauge Hatches

Gauge hatches are typically installed on the tank roof in locations that provide safe operator access. Proper installation, level alignment, and high-quality sealing are essential for correct performance. Periodic inspection, checking gasket integrity, verifying the closure mechanism, and regular cleaning are key maintenance practices that extend the hatch’s service life and maintain system safety.

Conclusion

The Gauge Hatch / Thief Hatch is an essential piece of equipment for industrial storage tanks, providing safe and accurate access for sampling and measurement operations. With standardized design, proper sealing, and automatic operation, it plays a critical role in enhancing safety, reducing vapor release, and optimizing tank operations. Using an appropriate Gauge Hatch is an integral part of safety and control systems in the oil, gas, petrochemical, and chemical industries.
