Explosion Door (Relief Door)

Introduction to Explosion Door (Relief Door)

The Explosion Door or Relief Door is a key device in industrial safety systems, designed to protect tanks, reactors, and pressure equipment against internal explosions. This device provides a controlled discharge path for gases and vapors during an explosion, diverting excess pressure away from structures and preventing mechanical damage and explosion hazards. The Explosion Door acts as a passive safety element, operating without any external control system and providing a rapid and reliable response under critical conditions.

The use of this device is vital in industries where chemical, powder, or gas processes have explosive potential. Installing an Explosion Door ensures that sudden pressure increases caused by ignition or explosion are controlled and safely discharged, without endangering primary equipment or personnel.

What is an Explosion Door and How Does It Work?

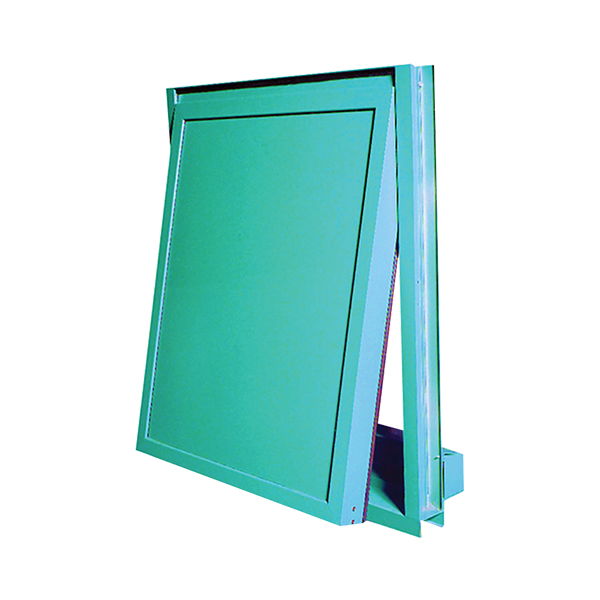

The Explosion Door is a mechanical panel installed at critical points of pressurized equipment. This panel is designed to withstand a specified pressure and, upon reaching the critical limit, opens in a controlled manner to provide a rapid outlet for gases and vapors. Opening the door reduces internal pressure and prevents serious damage to the structure or process equipment.

The operation of the Explosion Door is entirely mechanical and does not require external energy. This feature allows pressure discharge to occur without delay or human error in critical situations. After activation, depending on the design type, the door may require replacement or may be capable of re-closing for reuse.

Types of Explosion Doors and Their Applications

Explosion Doors are categorized based on installation type, material, and operation method. Frame-mounted models are designed for installation on tanks and reactors, safely directing explosion pressure away. Spring-loaded models are designed to re-close after pressure reduction, ensuring continuous safety. Gas- or hydraulic-actuated models are used for very high pressures and specialized applications in the oil, gas, and petrochemical industries.

These doors are widely used in explosive chemical storage tanks, powder and gas reactors, gas pipelines, milling systems, flammable powder tanks, petrochemical units, and oil refineries. Proper installation and selection of the appropriate Explosion Door for each process play a critical role in protecting equipment and personnel.

Advantages of Using an Explosion Door

Using an Explosion Door increases safety and reduces explosion risks. This device provides rapid and controlled pressure discharge, prevents damage to primary equipment, and reduces costs associated with emergency shutdowns and repairs. Explosion Doors are designed for high mechanical strength, long service life, and compatibility with corrosive environments or high temperatures, offering reliable performance with minimal maintenance.

Key Components and Materials of the Explosion Door

The Explosion Door consists of the body, main panel, hinge or spring system, sealing, and sometimes a locking and guide system for opening. Construction materials, depending on process conditions, include carbon steel, stainless steel, and nickel or Monel alloys, providing the necessary mechanical and chemical resistance to prevent damage during explosions. Panel design must consider explosion pressure, process temperature, and fluid type to ensure safe operation.

Design, Installation, and Maintenance of Explosion Door

The design of the Explosion Door should consider design pressure, operating pressure, tank volume, material type, and international standards. Correct installation, proper orientation, and verification of tolerances are essential for reliable system operation. Periodic maintenance, including inspection for mechanical damage, corrosion, and operation of the opening/closing system, is essential to ensure long-term and safe performance.

Conclusion

The Explosion Door or Relief Door is one of the most important safety devices for controlling explosive pressure in pressurized industries. Engineered design, durable material selection, proper installation, and regular maintenance ensure safe and stable system performance. Using an Explosion Door increases safety, reduces explosion hazards and financial losses, and improves operational efficiency in the oil, gas, petrochemical, and chemical industries, making it a critical requirement in the design of safe process systems.
